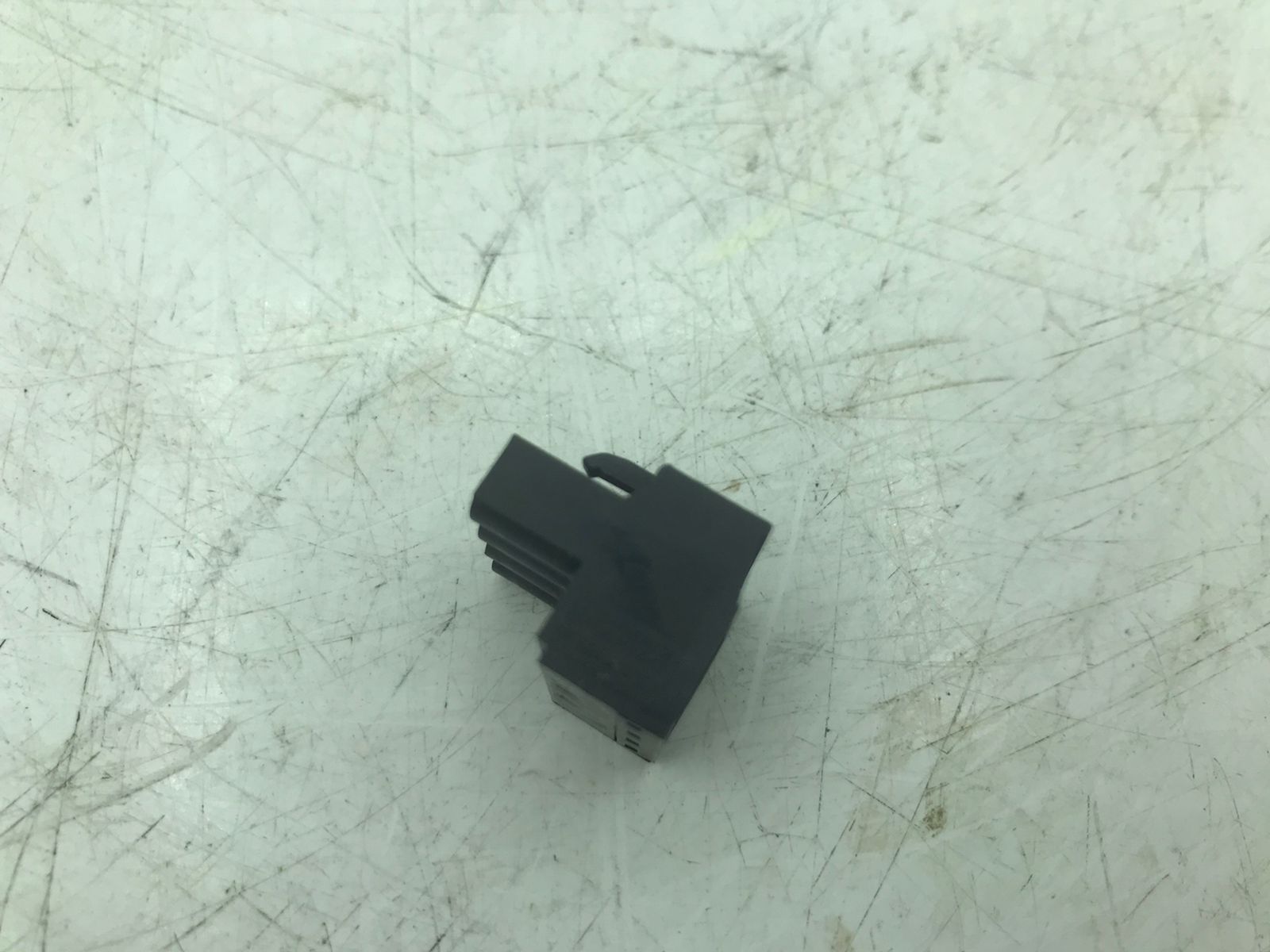

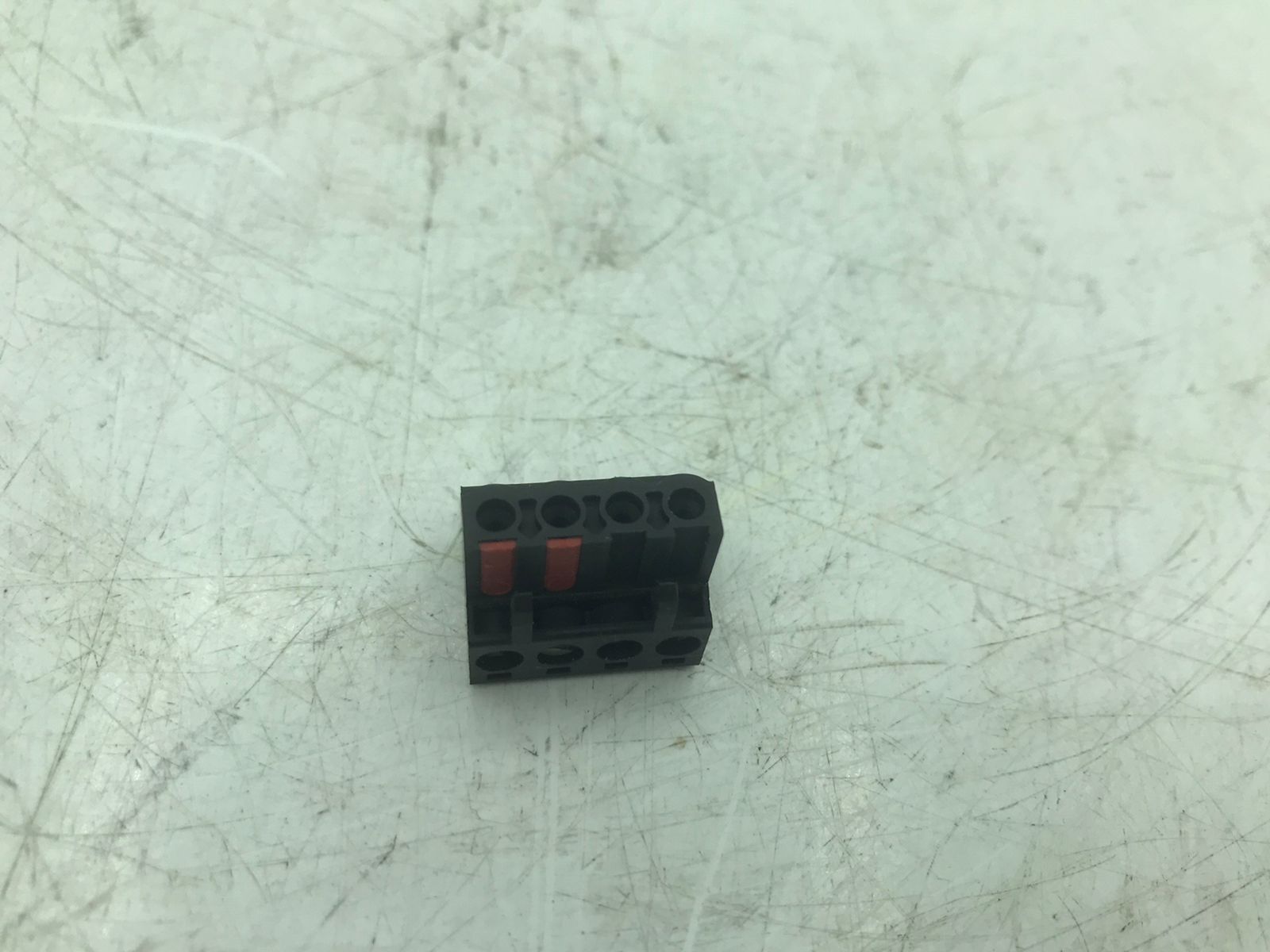

Phoenix Contact MSTBT 2,5/4-ST PCB Terminal Block Plug 4-Pos 5.08mm Pitch Green

For sale is a genuine Phoenix Contact Pluggable Terminal Block, model MSTBT 2,5/ 4-ST. Designed for high-reliability industrial connections, this 4-position PCB connector features a 5.08mm pitch and screw connection with tension sleeves. Ideally suited for heavy-duty automation environments, control cabinets, and signal distribution systems requiring secure, maintenance-free wiring.

Technical Specifications

Brand: Phoenix Contact

Part Number: MSTBT 2,5/ 4-ST (Compatible with MSTB Headers)

Type: PCB Connector (Plug)

Number of Positions: 4 Poles

Pitch: 5.08 mm

Connection Method: Screw connection with tension sleeve

Nominal Current: ~12 A

Nominal Voltage: ~320 V

Wire Gauge Compatibility: 12-24 AWG (0.2 mm² – 2.5 mm²)

Color: Green (Industrial Standard)

Included Accessory: (Remove if not applicable) Includes E/UK End Clamp for DIN Rail mounting stabilization.
