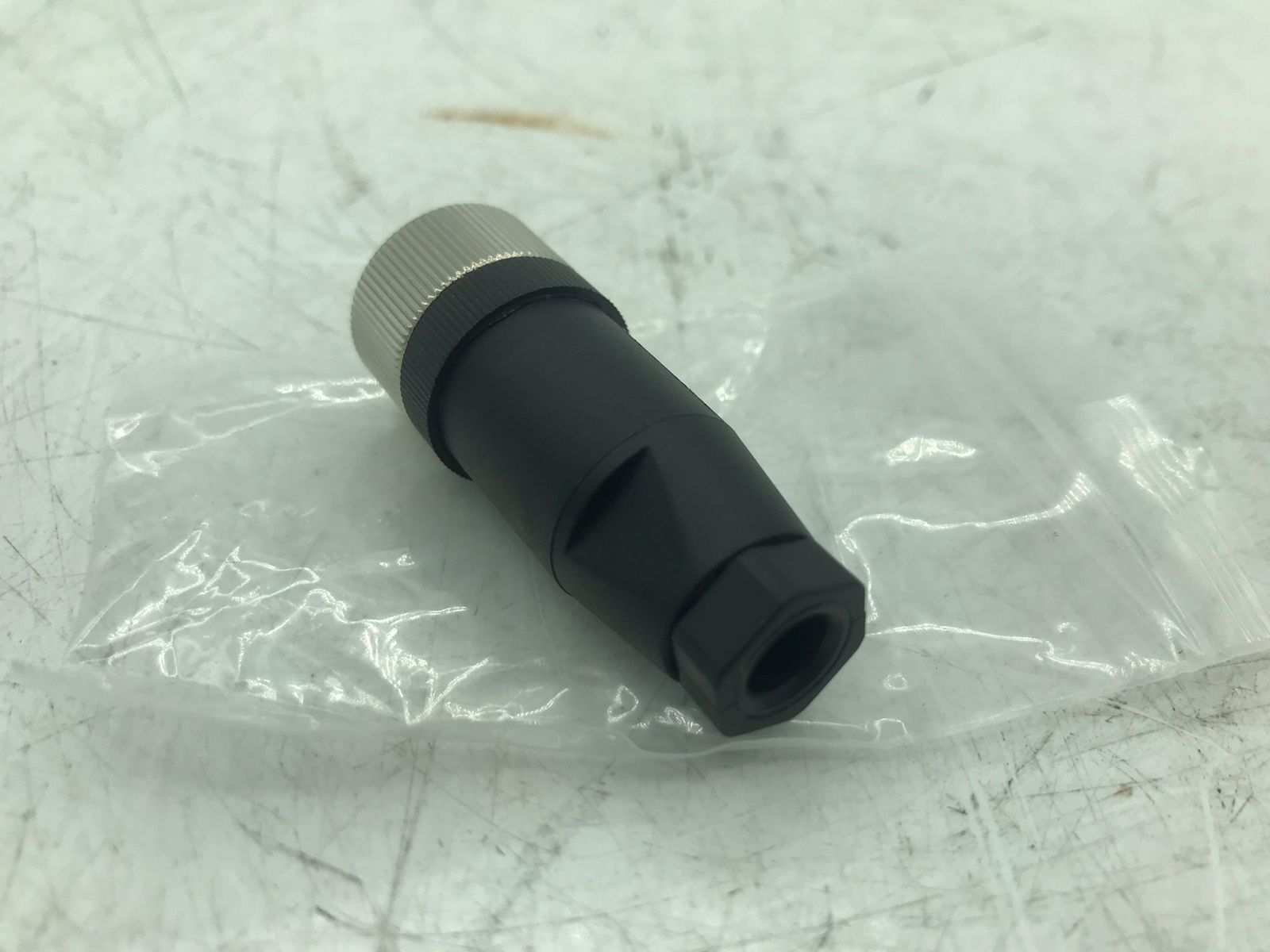

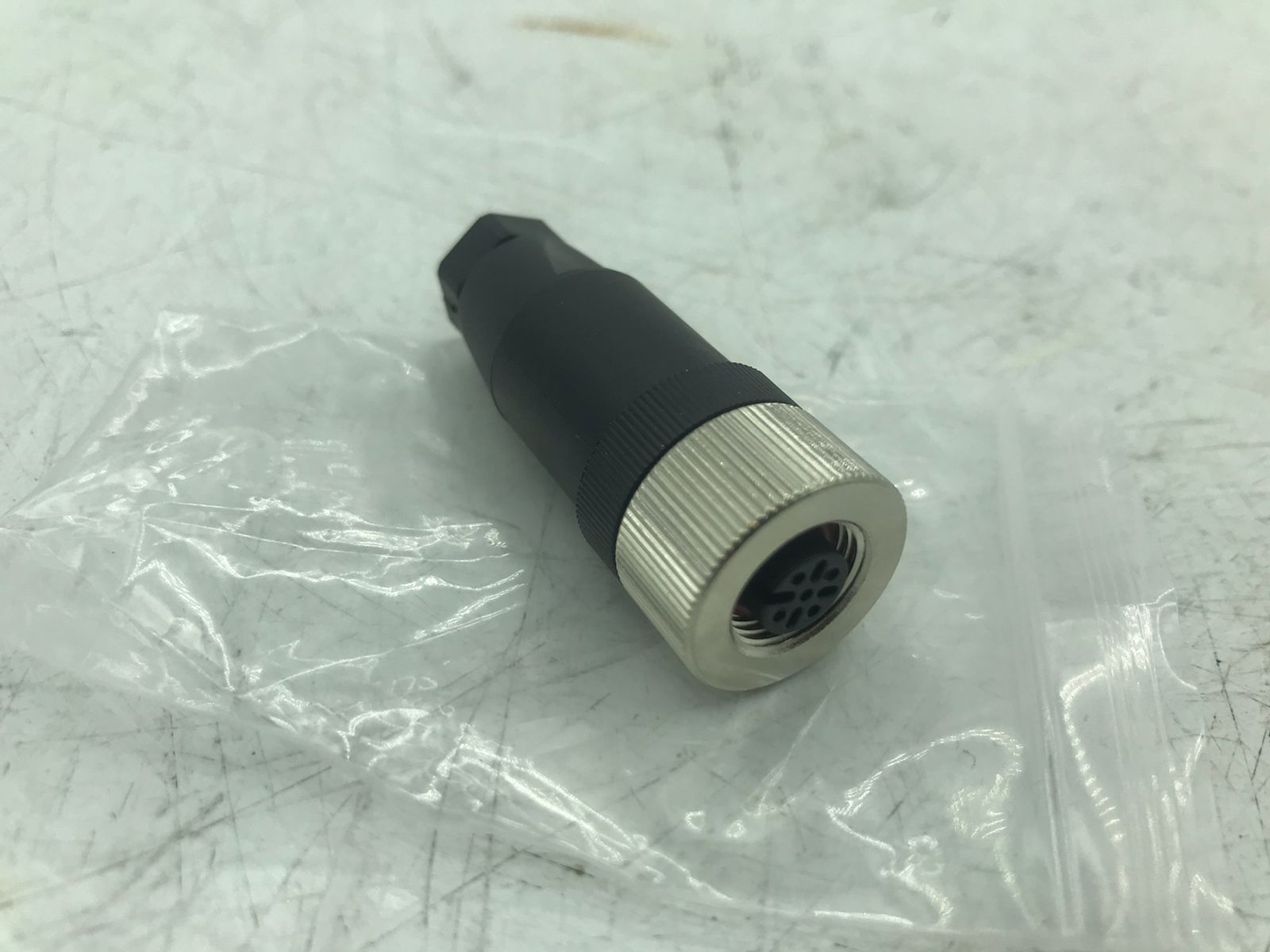

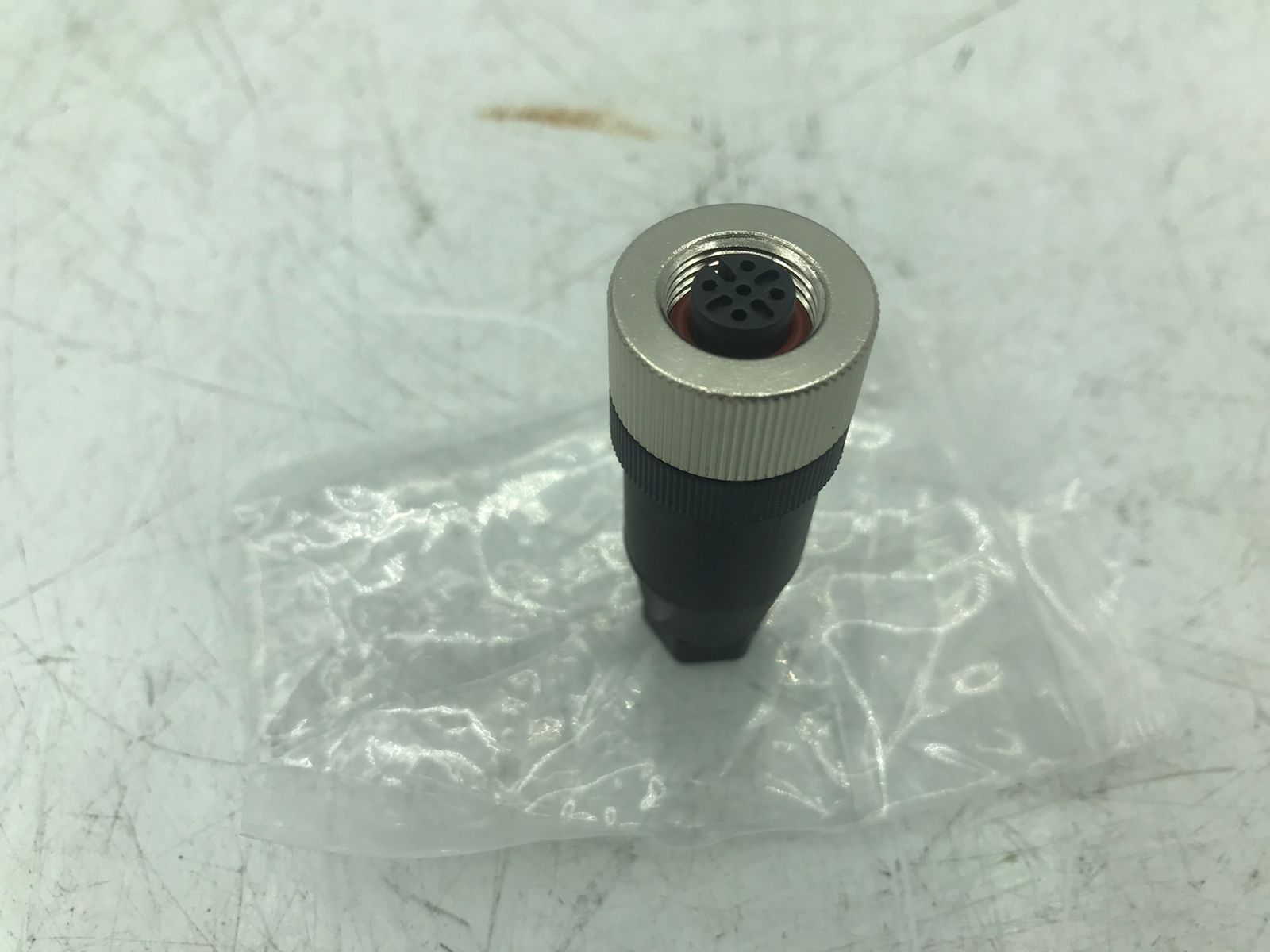

M12 Female Connector 5-Pin Straight Field Wireable Socket Sensor Plug A-Coded

Heavy-Duty Connection: Industrial-grade M12 female connector (socket) featuring a high-visibility orange O-ring seal for superior ingress protection (IP67 rated when mated). Designed for reliable field termination of sensor and actuator cables.

Field Wireable Versatility: Screw-terminal termination allows for easy on-site installation or repair without soldering. Compatible with all standard M12 5-pin male plugs (A-Coded) typically found on proximity sensors, photo-eyes, and safety switches.

Technical Specifications

Connector Type: M12 Circular DIN Connector.

Gender: Female (Socket/Jack).

Pin Configuration: 5-Pin (Standard A-Coded).

Sealing: Integrated Orange FKM/Viton O-Ring for IP67 protection.

Termination: Screw Terminals (accepts wire gauges 18-24 AWG).

Locking: Metal Knurled Nut (Nickel-Plated Brass).

Current Rating: 4A / 60V (Standard Industrial).
